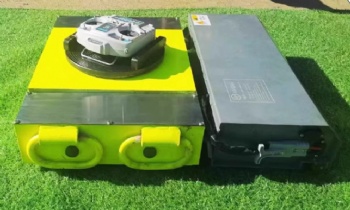

self-propelled electric moving skates
Model: | TS20T | TS25T | TS30T | TS35T | TS50T |
Capacity | 20T（Traction） | 25T（Traction） | 30T（Traction） | 35T（Traction） | 55T（Traction） |
Size | L*W*H 620*620*155mm | L*W*H 620*620*160mm | L*W*H 700*700*185mm | L*W*H 750*750*185mm | L*W*H 910*800*185mm |
Configure | Motor:750W*2 Gearbox:6JU100L Battery: 60Ah Ternary lithium battery
| Motor:1000W*2 Gearbox:6JU100L Battery: 60Ah Ternary lithium battery | Motor:1000W*2 Gearbox:7JU100L Battery: 60Ah Ternary lithium battery | Motor:1500W*2 Gearbox:7JU100L Battery: 120Ah Ternary lithium battery | Motor:2000W*2 Gearbox:7JU100L Battery: 120Ah Ternary lithium battery |
Package Size | 640*640*160mm | 640*680*180mm | 720*720*200mm | 780*780*200mm | 800*920*200mm |
G.W. | 137KG | 139KG | 235KG | 240KG | 255KG |
Wheels Size | 130MM*90MM | 130MM*110MM | 135MM*120MM | 135MM*120MM | 140MM*150MM |
Wheels material | Import Polyurethane | Import Polyurethane | Import Polyurethane | Import Polyurethane | Import Polyurethane |
Turntable Height | 20mm | 20mm | 20mm | 20mm | 20mm |
Turntable Diamenter | 250mm | 250mm | 320mm | 320mm | 320mm |
Battery | ternary lithium battery 60AH | ternary lithium battery 60AH | ternary lithium battery 60AH | ternary lithium battery 120AH | ternary lithium battery 120AH |
Gradeability | 15 Degrees | 15 Degrees | 15 Degrees | 15 Degrees | 15 Degrees |
Matching Rear Skate: | Note: Additional fees will be charged for Matching Rear Skate | ||||
Single row 2 wheels | Single row 3 wheels | Double row 3 wheels (a total of 6 wheels) | Double row 4 wheels (8 wheels in total) | Double row 4 wheels (8 wheels in total)
| |
Price: FOB China USD$ | $4600.00 | $4900.00 | $5500.00 | $5800.00 | $7800.00 |
Using Impact resistance 1300Mpa high-strength steel plate, with strong frame. 12mm Thickness. | |||||
The charging voltage is 220-260 volt | |||||
